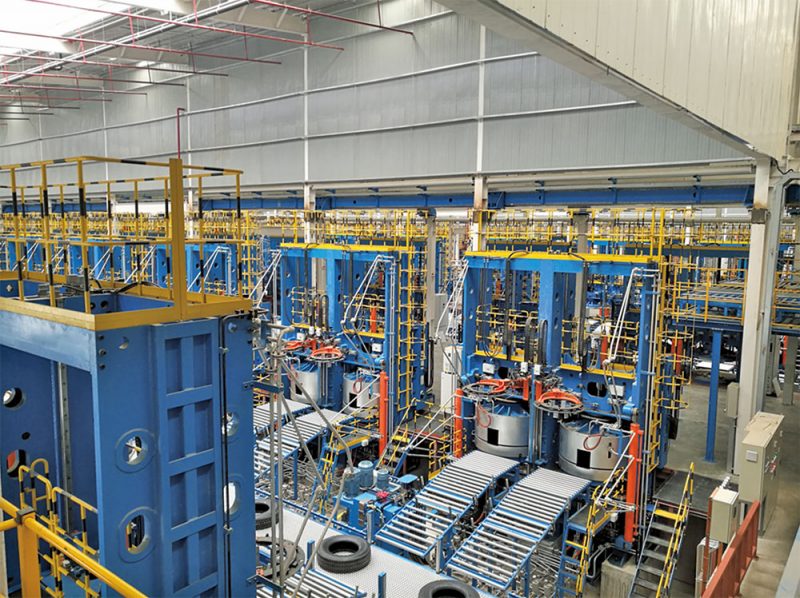

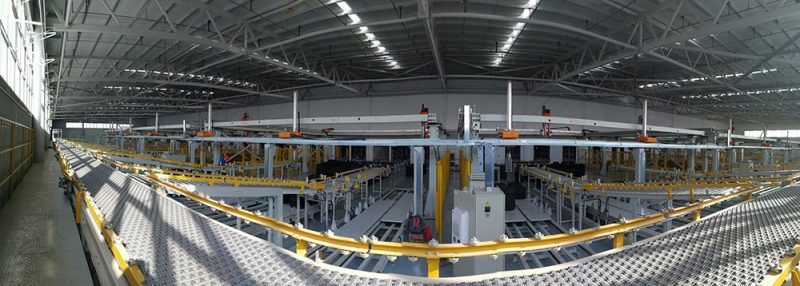

Jinshi Robotics has developed a fully automated solution for tire production, from temporary storage after embryo formation, to loading and unloading of vulcanization machines, then to labeling, scanning, sorting, palletizing, and warehousing, and finally automatically issuing, sorting, packaging, and loading according to orders. The entire production process is unmanned, and information from any link can be traced.

● X-axis speed: 80m/min
● Y-axis speed: 50m/min
● Z-axis speed: 50m/min
● Positioning accuracy: ± 3mm
● Maximum gripping weight: 660kg

Quick loading and unloading in 9 minutes
Single loading and unloading takes 30 seconds, and the entire vehicle takes 9 minutes to complete loading and unloading.

Storage capacity increased by 6 times
By using high-precision stacking and increasing storage height, the storage capacity has been increased by 6 times.

Intelligent palletizing for quick outbound delivery
By combining the stacking algorithm, the automatic stacking of outbound codes is placed on the outbound line to achieve fast loading.
